Project profile: Westfield Viaduct

About the structure

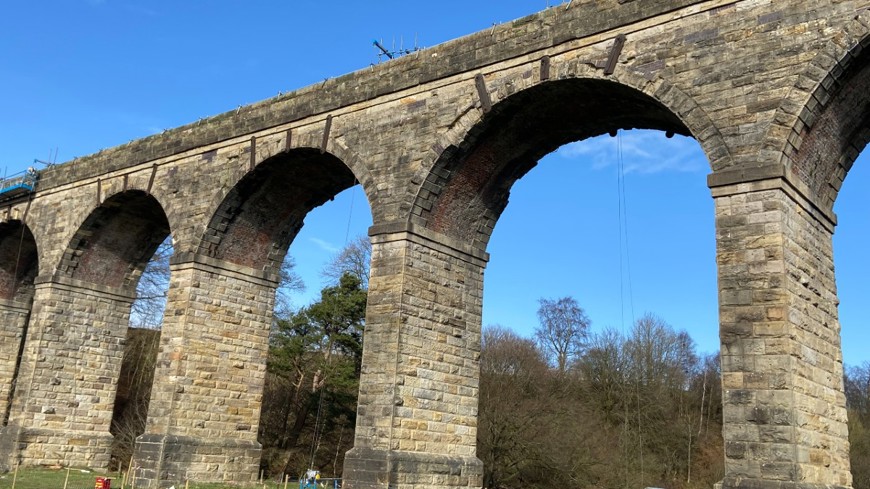

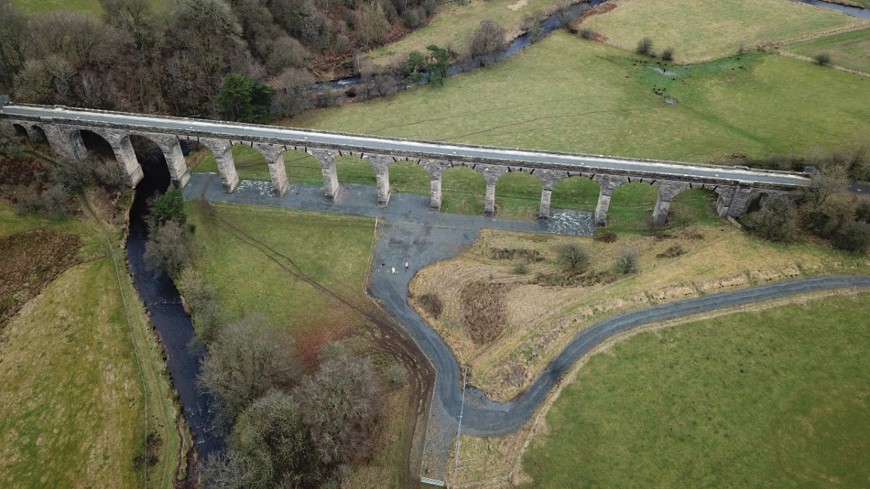

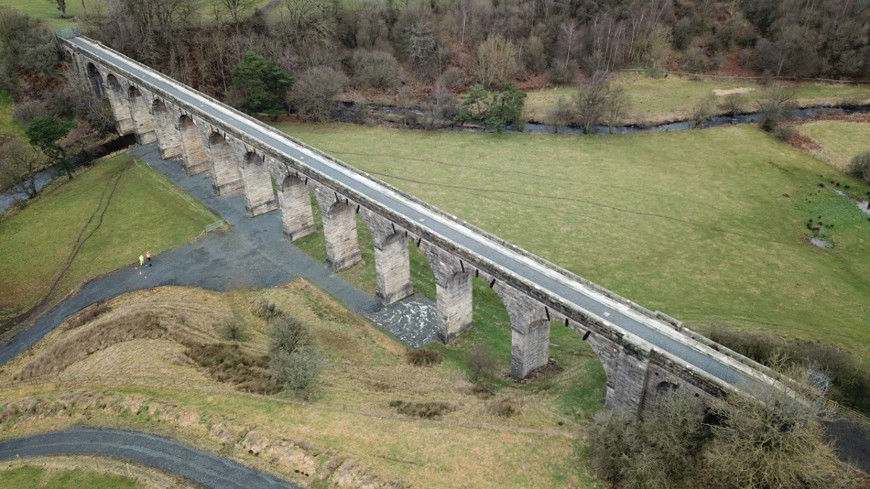

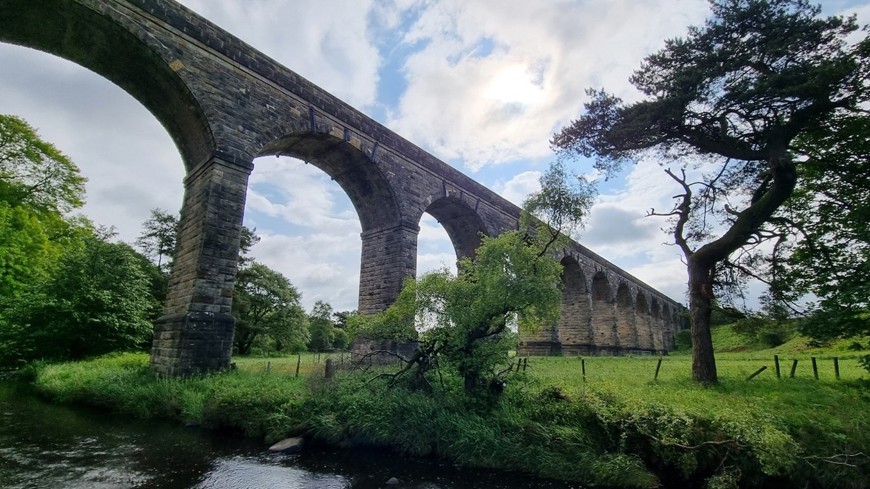

The former Railway viaduct was built between 1854 and 1855 as an extension of the Monkland Railway, consisting of 16 arches spanning land and water. It later became part of the North British Railway - used mainly to transport minerals and coal to market over the River Avon. The line closed in 1964.

Standing at 60 feet the viaduct remains a prominent feature in the landscape.

What is the project?

Years of exposure to wind and rain left the viaduct in need of care and attention.

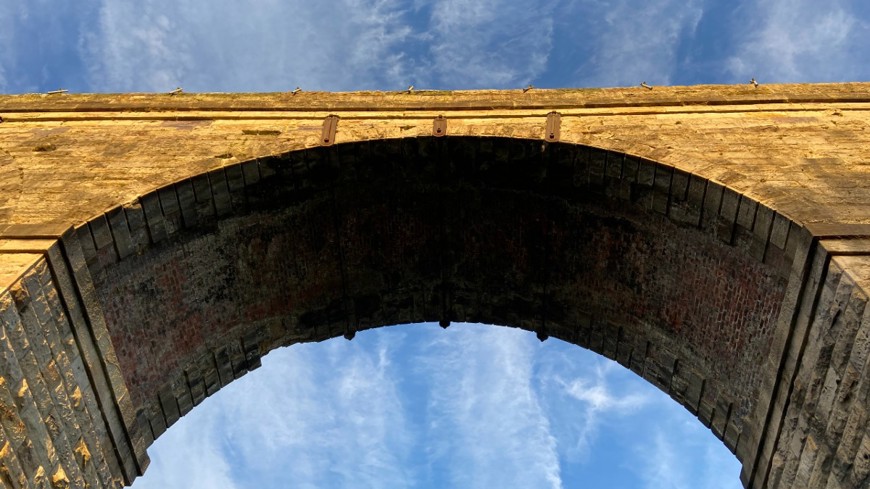

Engineers worked closely with our contractor Balfour Beatty to develop a plan to strengthen and waterproof the arches of the viaduct.

Work began in 2021, however, delays due to the Covid pandemic resulted in us taking the opportunity to carry out more extensive repairs.

What work needed to be done?

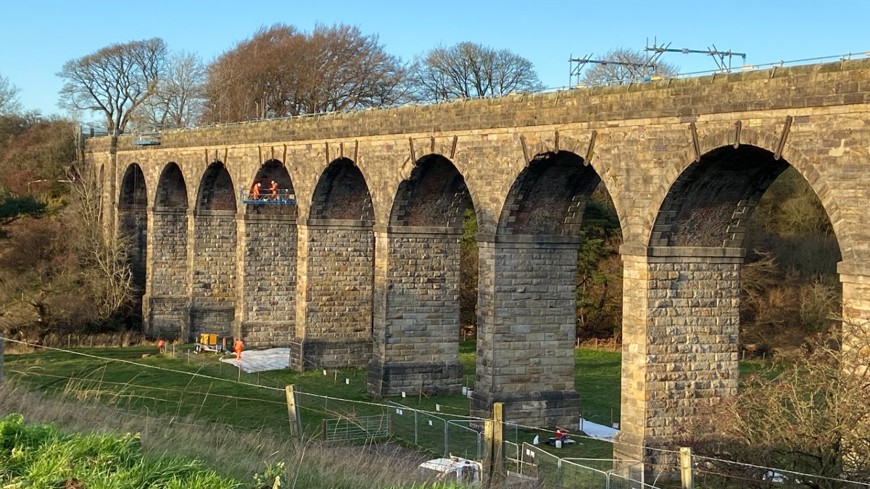

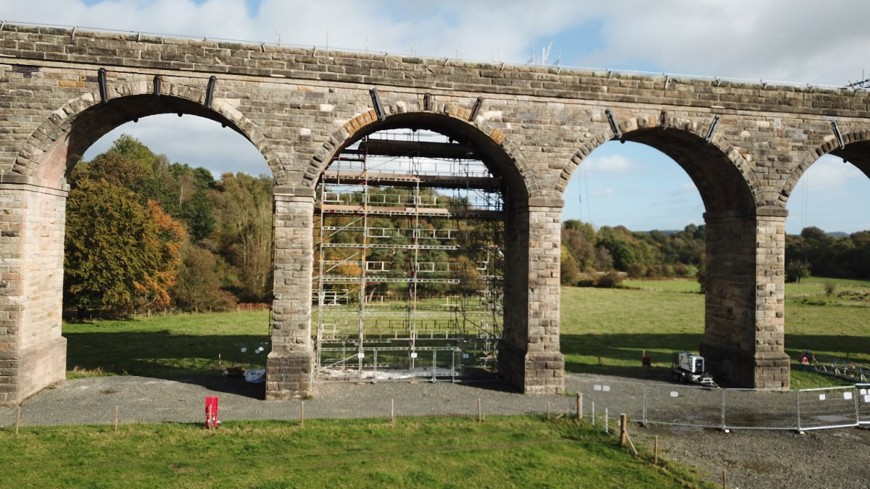

A huge amount of work was needed to all the viaduct’s spans - this included the removal of weathered stone – damaged by water and time – we colour matched to the original unweathered material.

Ecology surveys completed ahead of main works highlighted the structure was being used as a home for bats. Otters were also found to be using the river below. We’re committed to ensuring wildlife isn’t impacted by our work, so we completed additional surveys to better understand how animals were using the area as a habitat. Licenced ecologists directed abseilers to check dozens of gaps between the masonry of the structure itself – looking for signs of bat use. We also used drones to reduce the amount of time abseilers spent on the structure – ensuring the safety of both our workforce and bats.

Temporary bat boxes, tubes and bricks were installed where work wasn’t taking place for bats to use during hibernation seasons, so repair work to continue. These were then built into the structure itself as permanent roosts.

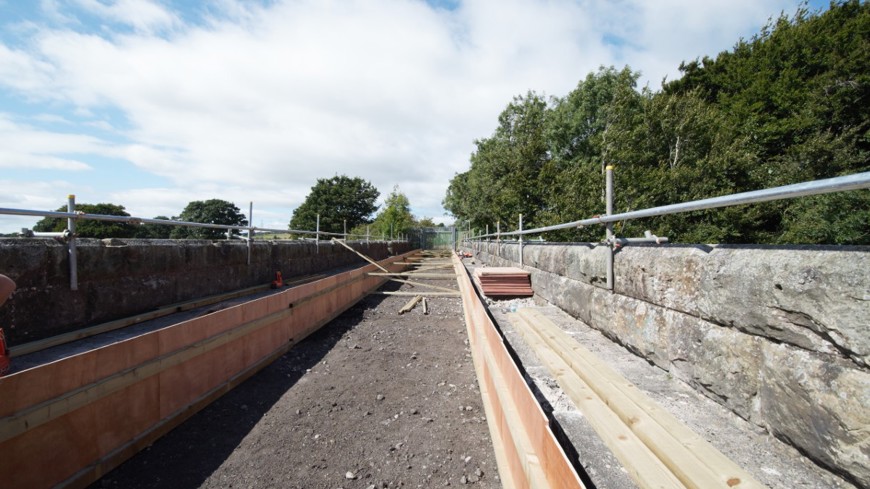

Other work included widespread vegetation clearance along the north and south, repairs to the parapet spanning the length of deck. New cast iron pattress plates, cast to match the originals, were also installed to replace damaged ones.

What stage is it at?

Work finished in December 2022.

An award winning project

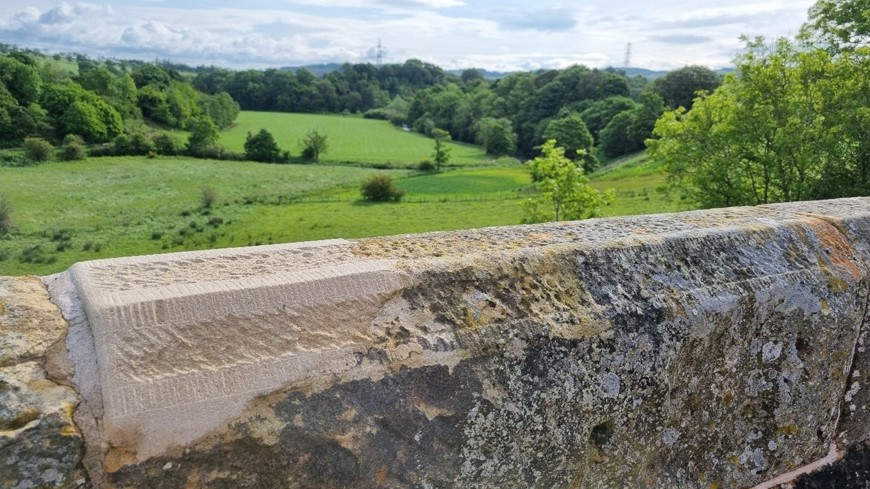

Our work on Westfield viaduct was recognised by the National Railway Heritage Awards, with the project winning the Translink Structures Award. Judges described the extensive repairs as “impressive” and praised the “eye catching” work of our contractors Balfour Beatty to reproduce the rock face sandstone detail on the parapet.

Helene Rossiter, Head of the Historical Railways Estate (HRE), said:

“We are thrilled to have won our first award at the National Railway Heritage Awards. Westfield Viaduct is one of Scotland’s oldest viaducts at nearly 170 years old, and our work means it remains safely standing as a reminder of the area’s industrial past."
