Project profile: Teviot Viaduct

A rare Victorian footbridge that was dismantled into almost 500 pieces was rebuilt like a giant jigsaw following extensive renovation work funded by National Highways.

Project profile: Teviot Viaduct

Location: Roxburgh, Scottish Borders

Contractor: Amco Giffen

Open to the public? Yes

Completion: Summer 2022

History

The Teviot Viaduct, also known as the Roxburgh Viaduct, was built in 1850 to take the railway across the River Teviot.

The line was built to support the Scottish wool industry and provide a diversionary route if the existing line was shut north of Tweedmouth. It was closed to passenger traffic in 1964 and the track later removed.

About the structure

The north side incorporates a footbridge, built at a lower level to the train line. The triple-span bridge is made of curved, lenticular wrought-iron trusses – a common design at the time, but few have survived.

What was the project?

The footbridge had been badly impacted by flooding as well as general decay, and to ensure it remained safe for users, major repairs and renovations were needed.

In October 2020 the footbridge was dismantled into nearly 500 pieces and taken for a much-needed facelift with Barnsley-based contractors AmcoGiffen.

Working closely with Scottish Borders Council conservation officers, specialist engineers assessed each piece of the footbridge, refurbishing and reusing as many as possible.

Elements that were beyond repair were digitally scanned so exact copies could be produced using a variety of techniques including laser cutting, profiling, casting and welding. Dome-headed bolts have been used to give the appearance of rivets used on the original bridge construction.

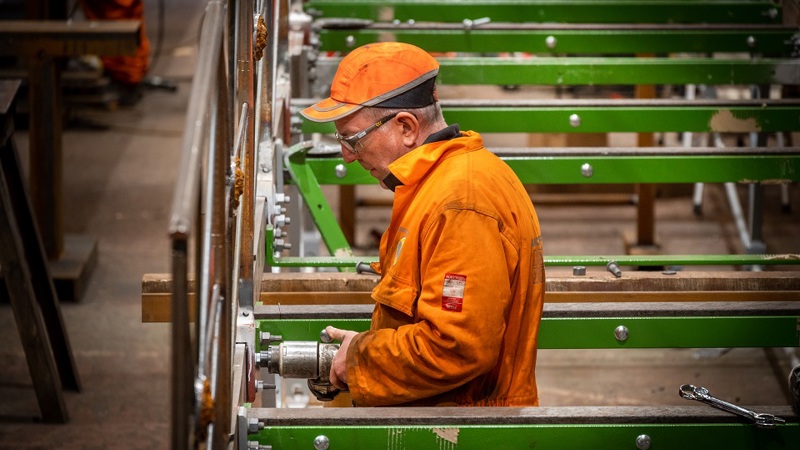

Each of the footbridge’s three spans were then reconstructed using a combination of retained and newly fabricated elements at the Barnsley workshop and painted ready for transportation back to Scotland.

Throughout the duration of the work an environmental management plan was in place to ensure the protection of the River Teviot and its ecosystem.

What stage is it at?

Restoration work is now complete and the footbridge has been re-installed on the north side of the viaduct.

The footbridge is a key part of the popular circular walking route along the Border Abbeys Way. This restoration work has ensured the route can continue to be enjoyed by walkers now and for many generations to come.

"This has been one of our more challenging projects but also very rewarding because the bridge is so unique, and it has been really satisfying to see the bridge rebuilt to the same intricate detail as the original Victorian design."
Dave Martin, Project Manager for AmcoGiffen
